S-UEM3 PRO Mac Fault Diagnostic Tester

S-UEM3 PRO Introduction and Applicable Model

一，Introduction

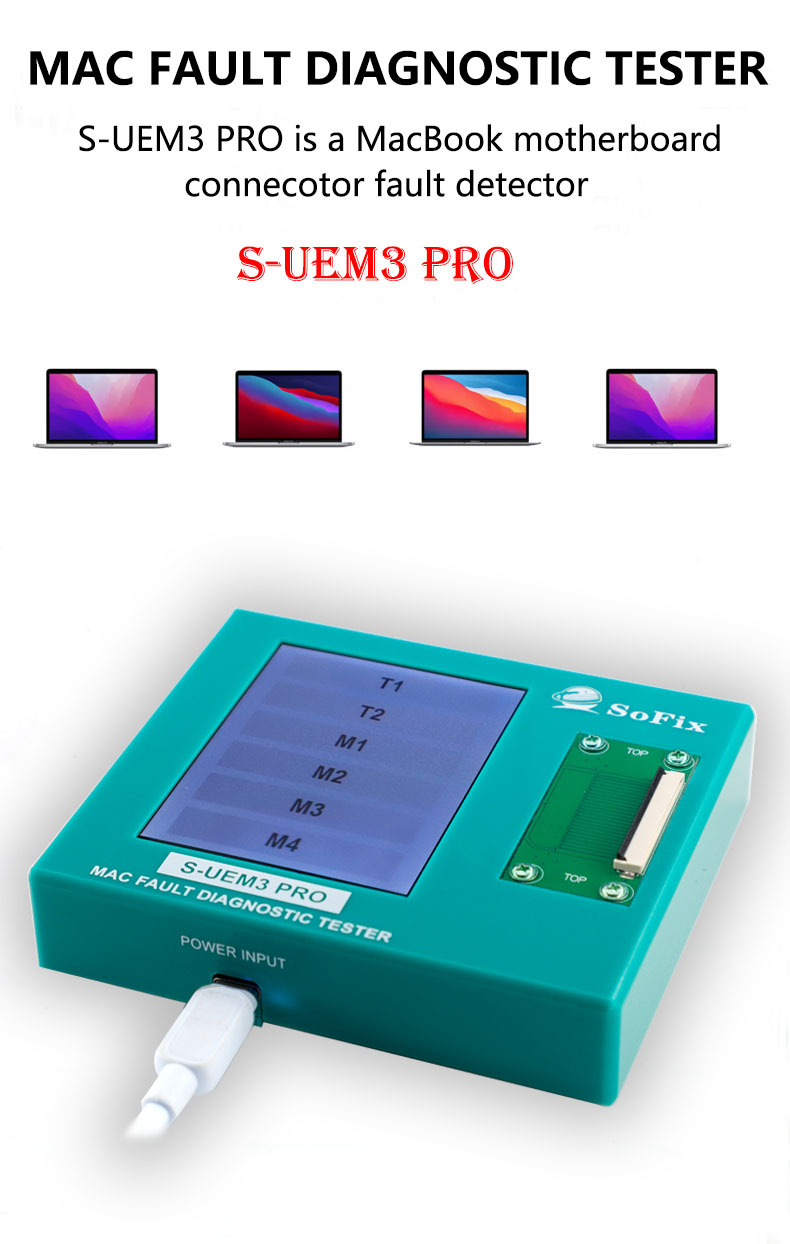

1. The S-UEM3 PRO is a MacBook motherboard connector fault detector.

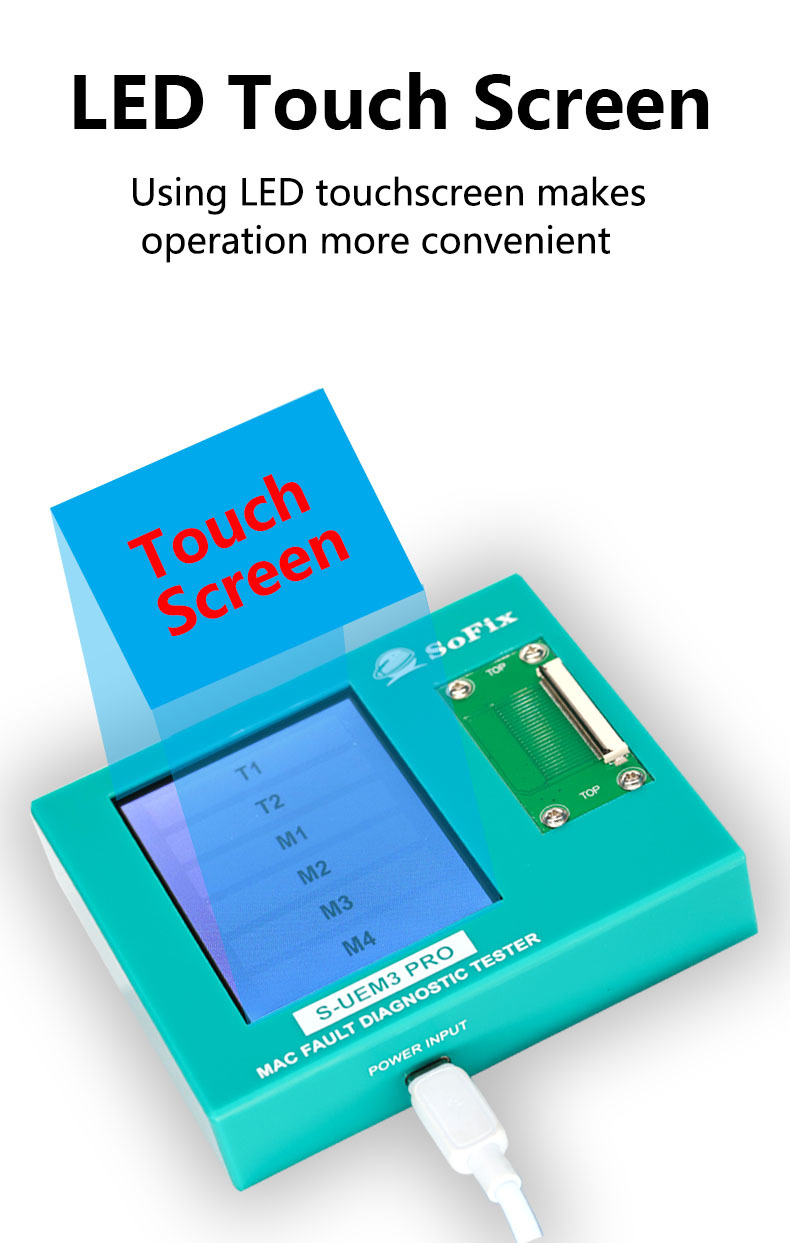

2 . Using LED touchscreen makes operation more convenient.

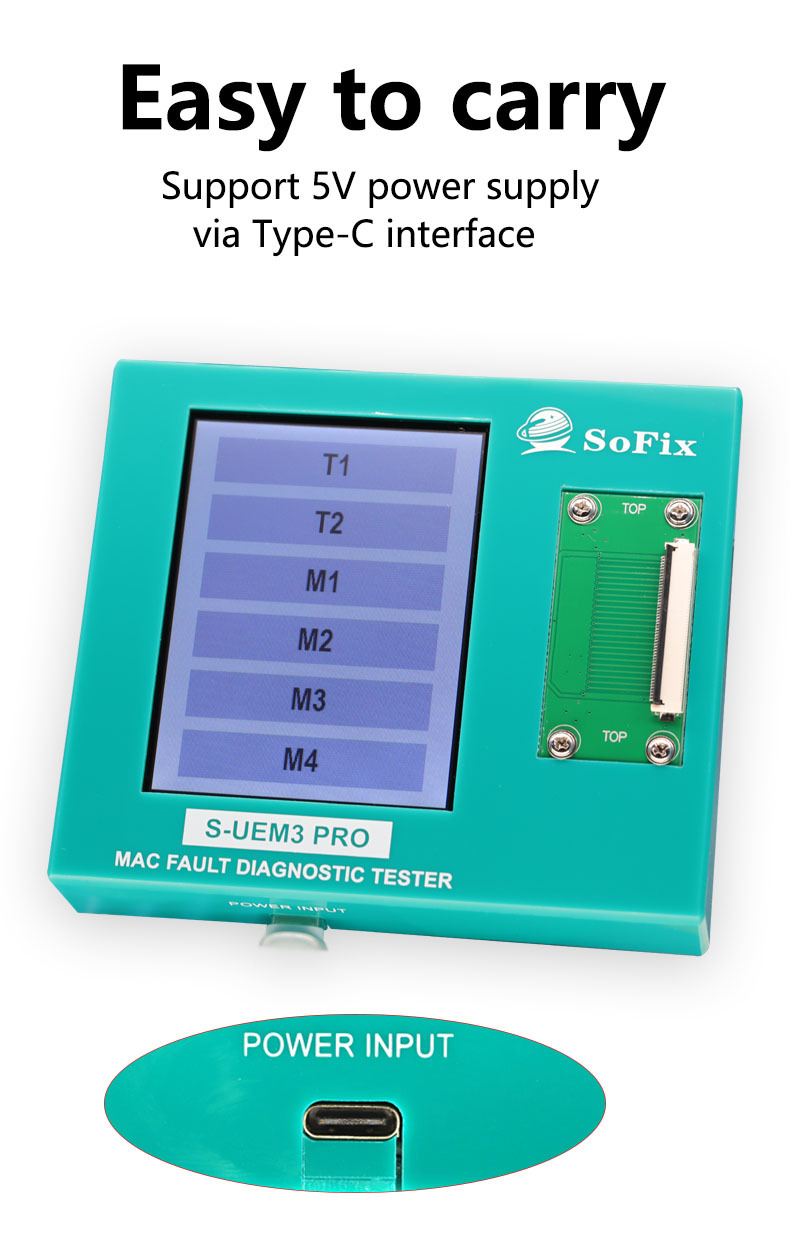

3. Support 5V power supply via Type-C interface

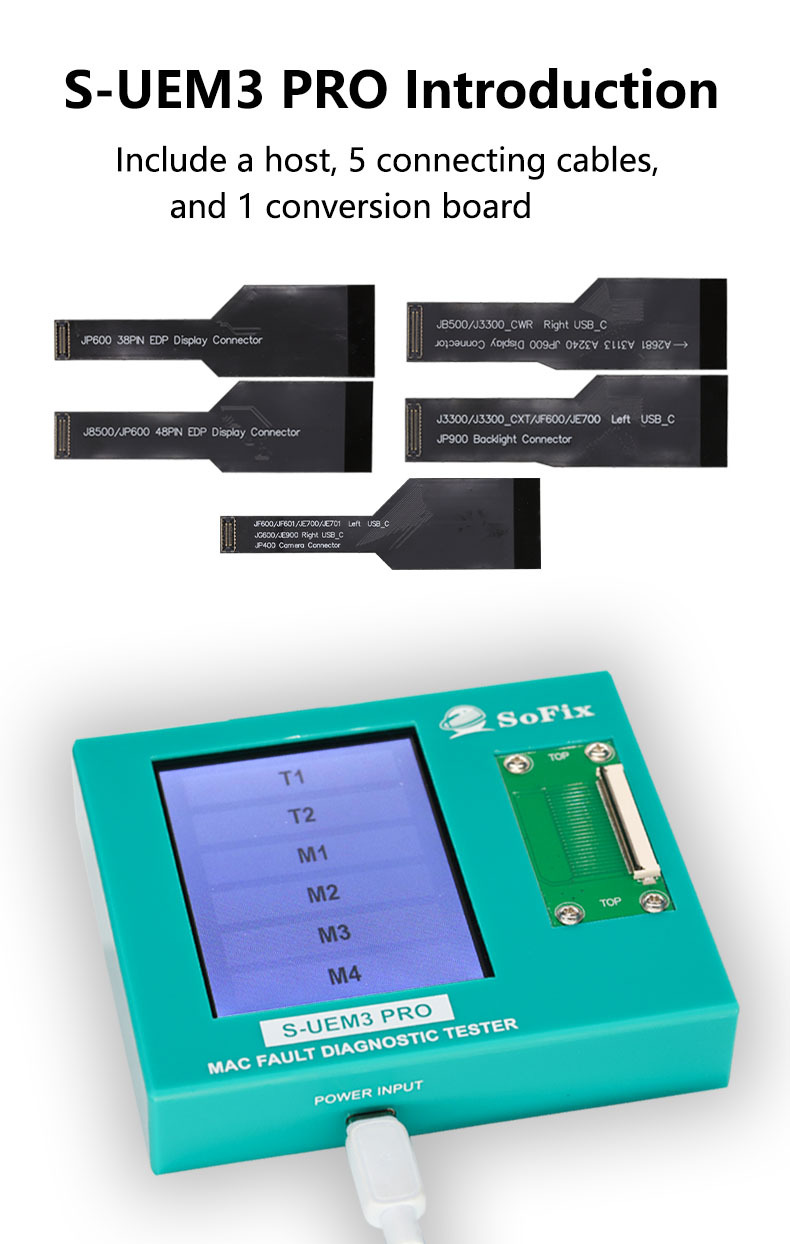

4. S-UEM3 PRO include a host, 5 connecting cables, and 1 conversion board

二， Usefulness

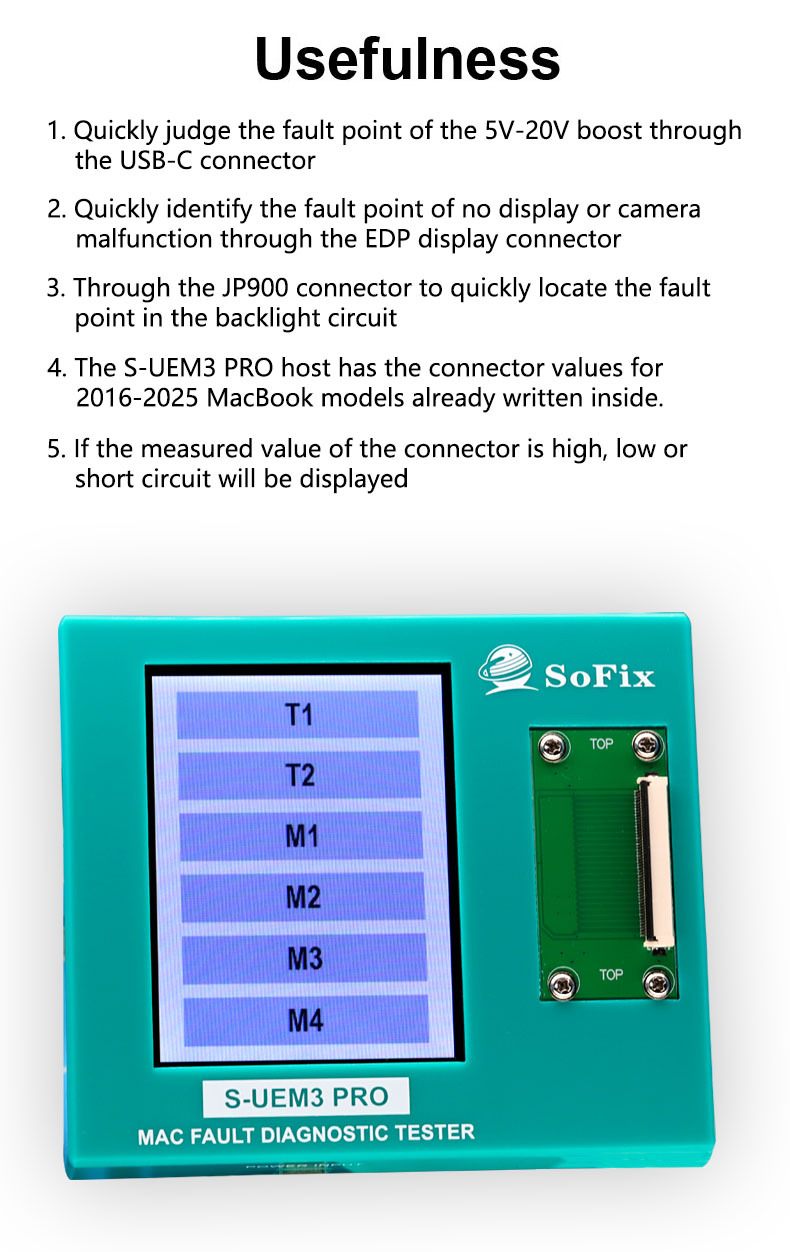

1. Quickly judge the fault point of the 5V-20V boost through the USB-C connector
2. Quickly identify the fault point of no display or camera malfunction through the EDP display connector
3. Through the JP900 connector to quickly locate the fault point in the backlight circuit
4. The S-UEM3 PRO host has the connector values ​​for 2016-2025 MacBook models already written inside.
5. If the measured value of the connector is high, low or short circuit will be displayed

三，Applicable model

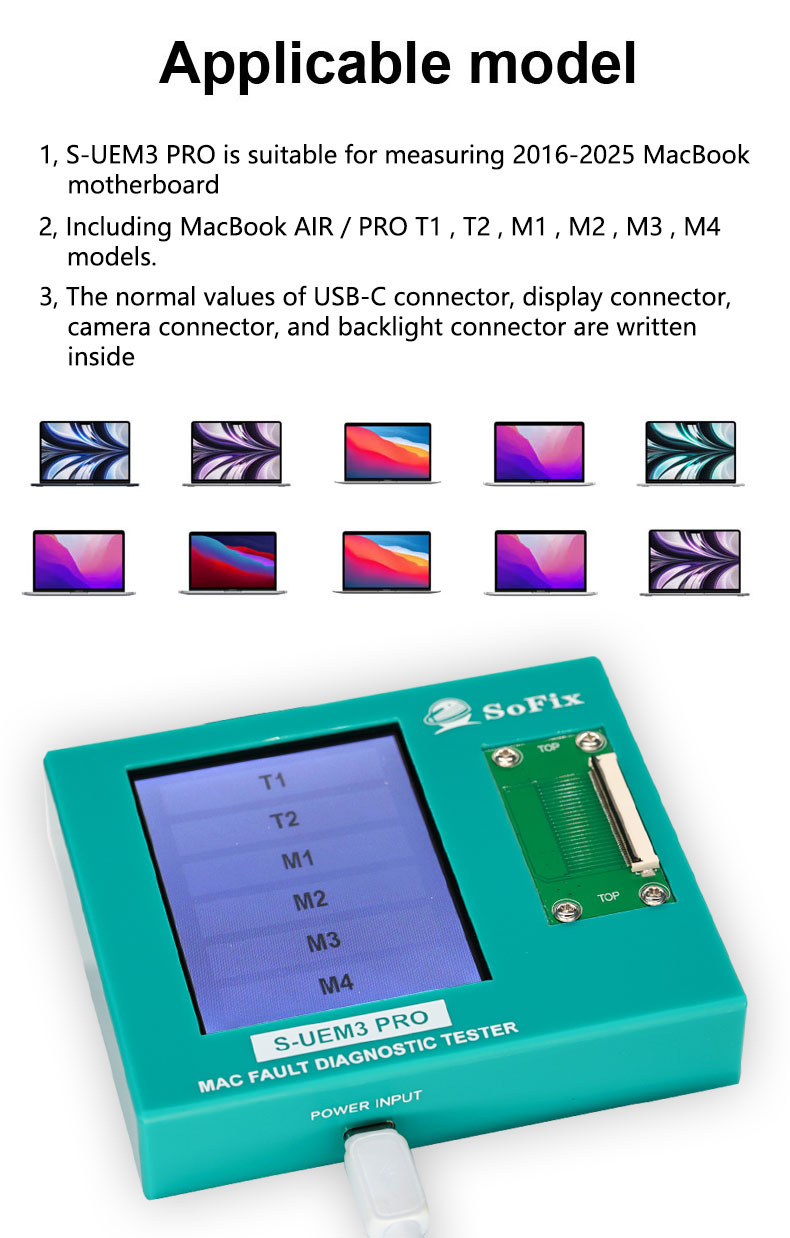

1, S-UEM3 PRO is suitable for measuring 2016-2025 MacBook motherboard

2, Including MacBook AIR / PRO T1 , T2 , M1 , M2 , M3 , M4 models.

• ,The normal values of USB-C connector, display connector, camera connector, and backlight connector are written inside

四，Compatible Models for Cables

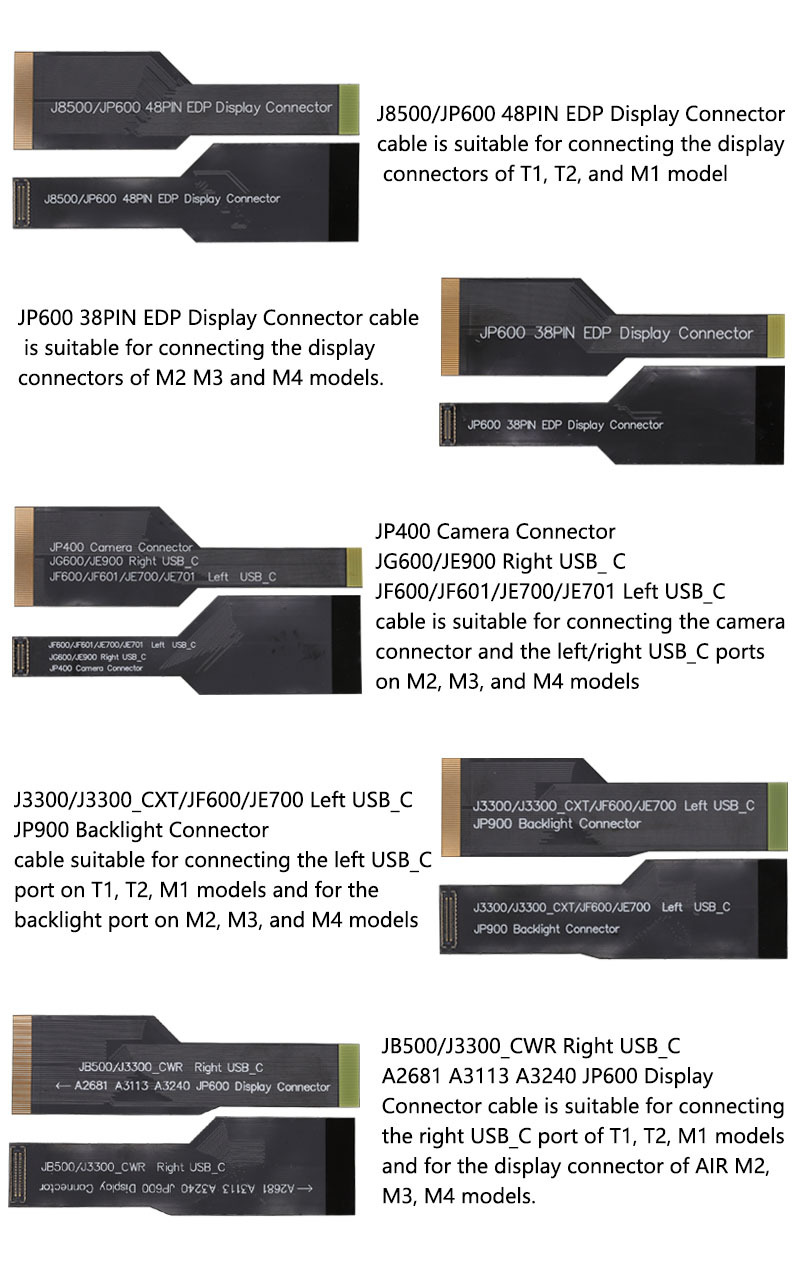

J8500/JP600 48PIN EDP Display Connector cable is suitable for connecting the display connectors of T1, T2, and M1 models.

JP600 38PIN EDP Display Connector cable is suitable for connecting the display connectors of M2 M3 and M4 models.

JP400 Camera Connector

JG600/JE900 Right USB_ C

JF600/JF601/JE700/JE701 Left USB_C

cable is suitable for connecting the camera connector and the left/right USB_C ports on M2, M3, and M4 models

JB500/J3300_CWR Right USB_C

A2681 A3113 A3240 JP600 Display Connector cable is suitable for connecting the right USB_C port of T1, T2, M1 models and for the display connector of AIR M2, M3, M4 models.

J3300/J3300_CXT/JF600/JE700 Left USB_C

JP900 Backlight Connector

cable suitable for connecting the left USB_C port on T1, T2, M1 models and for the backlight port on M2, M3, and M4 models.
