Characteristic:

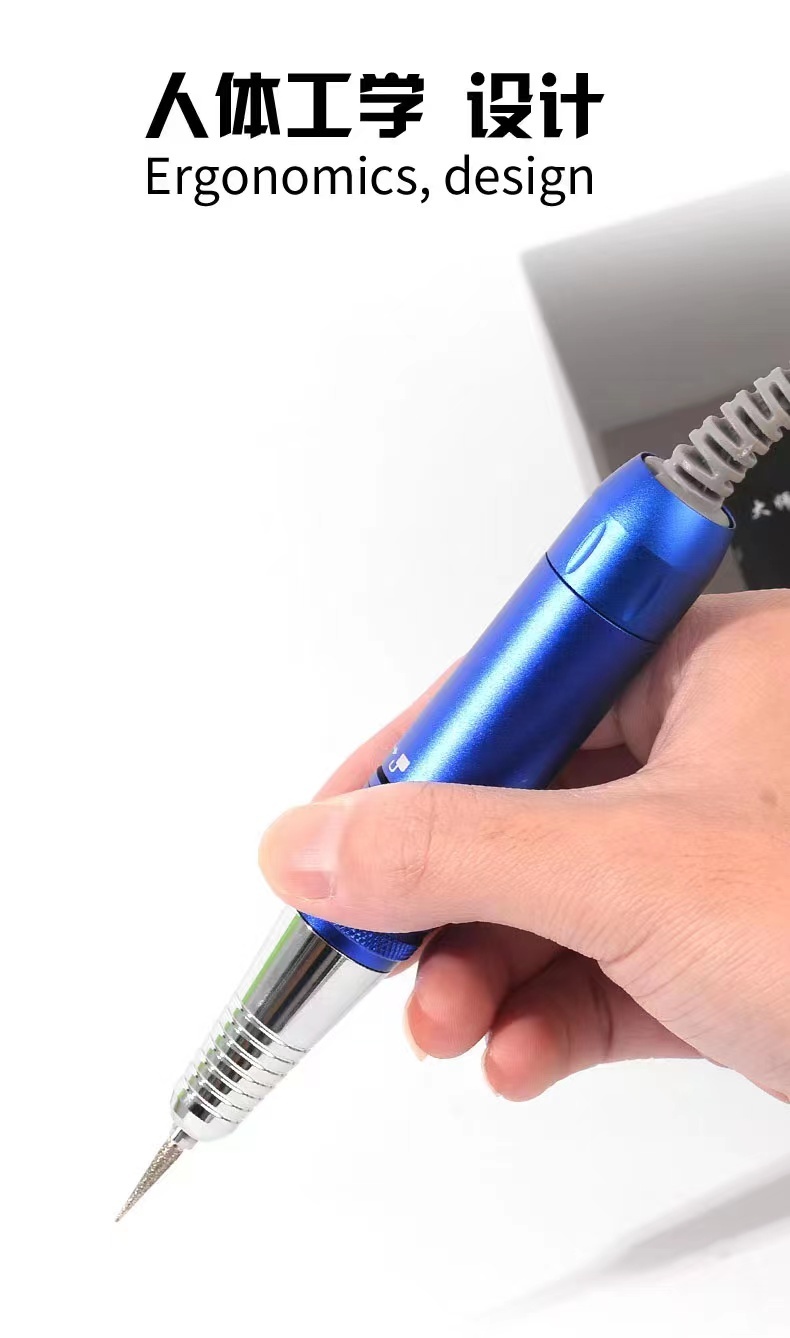

1.The handle bracket is made of cylindrical aluminum alloy which is convenient and practical
2.LCDRPM displays the speed from 0-35:0-35000r/min. Free switching in positive and neqative directions

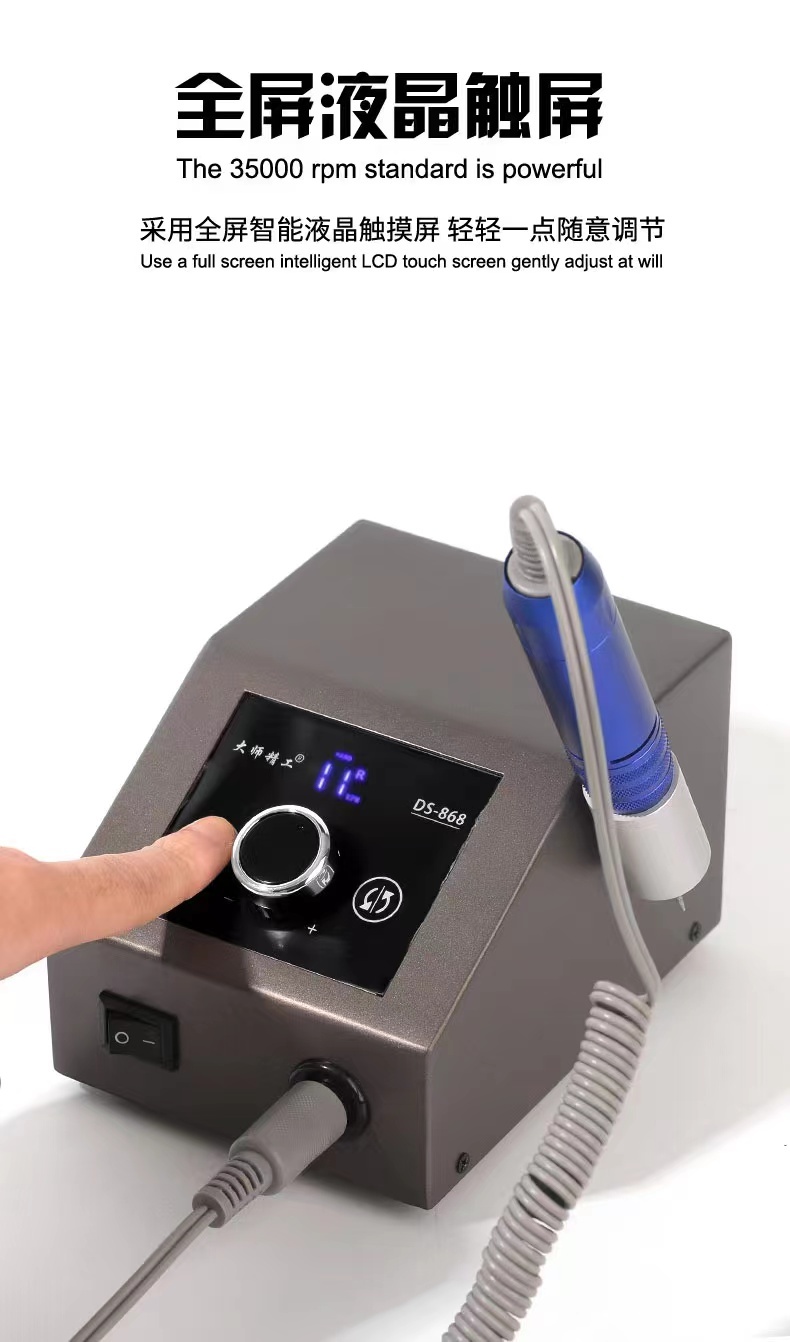

3. Touch the start stop switch for more convenient control
Motor operation:

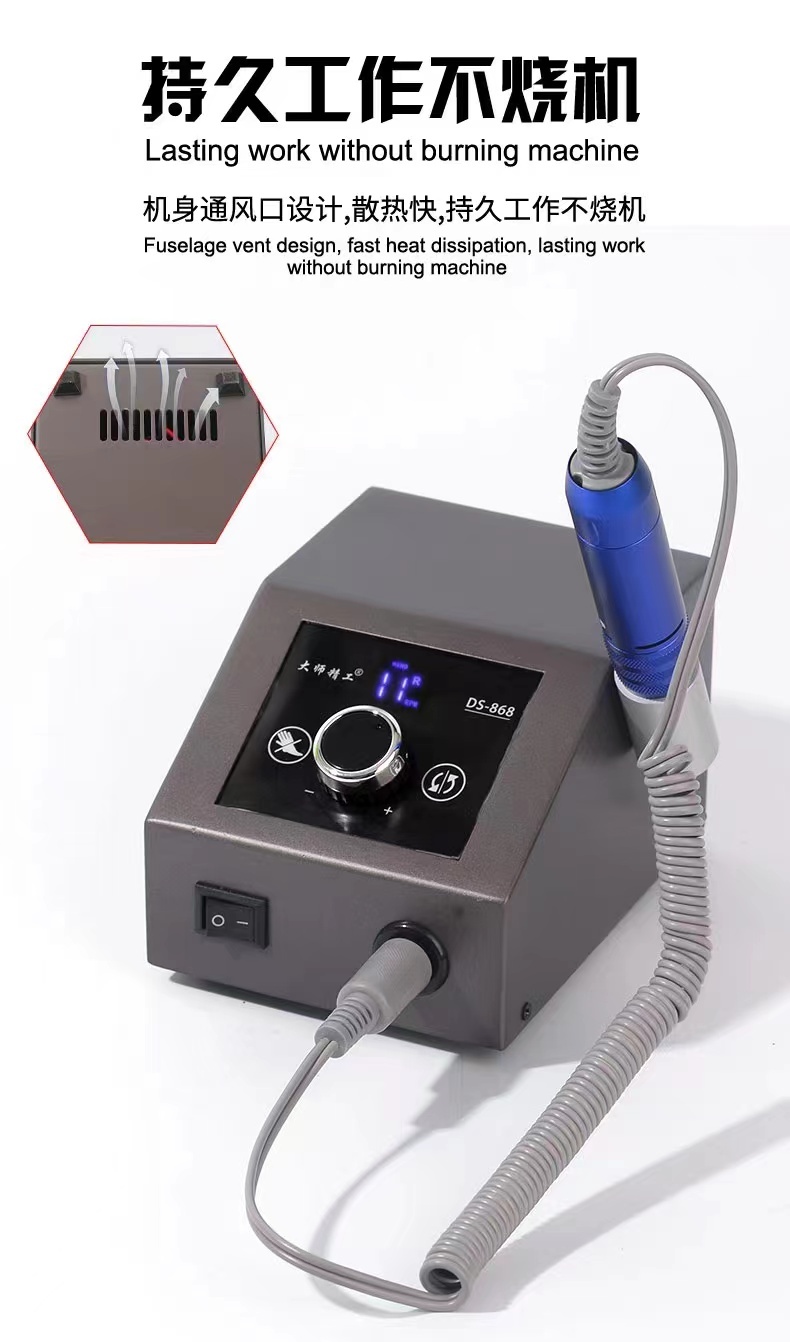

A.Connect the power cable to the power socket at the rear of the host
B.Turn onthe power switch to start the machine. Turn off the switch to stop the machine.
motor backwards To run. CTurn the forward/reverse selectorto"FWO" to run the motor forward, or *REV* to run the Operation Manual of Electric Mill

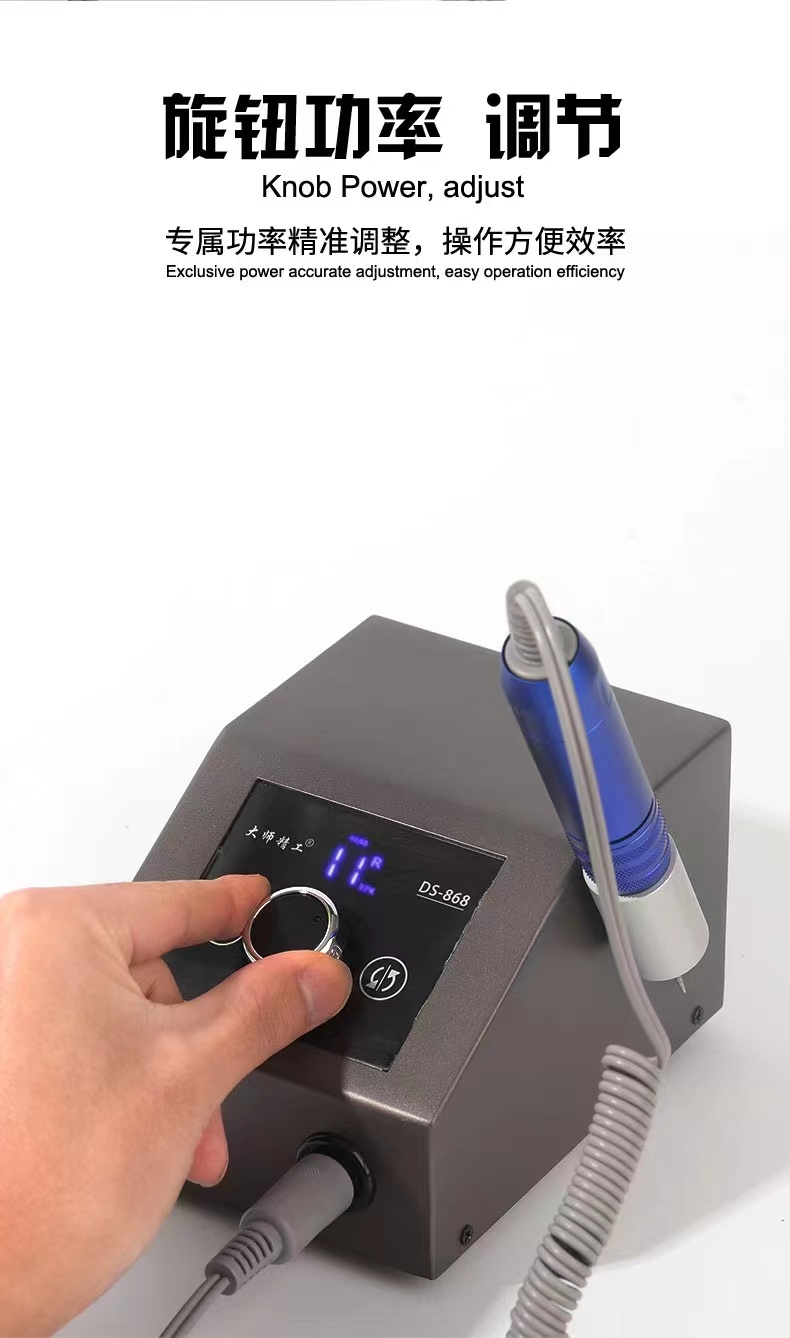

D.Themotorspeed can bechanged from 0 to 35000R pm by the speed control knob. With LCD RPM display from 0-35 Display each different motor speed.
Parameters: Power; 50W
Speed:0-35000rpm Output voltage:220V
Note:
Read the following safety instructions to avoid personal injury or equipment damage
1.The rated voltage is 110V/220V. If approved voltage ratings are not used. problems may occur with the product.
2.Always place the handle on the support when using
3.Often check whether the machine is loose. vibration, sound. operating temperature. If anything abnormal is found stop the operation immediately and call the dealer
Ds-nfa
4.Do not use or leave the machine in high temperature environment.
5.Do not let water or other liquid splash on the control unit and micro motor, which may lead to short circuit, abnormal heating or rust of other metal parts.
6. Be sure not to remove or alter the unit.
7.Do not insert too many power cables into one outlet. It can cause a fire.
8. Do not use damaged cables to avoid electric shock
9.Do not plug and remove the power cord with wet hands to avoid electric shock.
10.Be careful not to drop the handle. It can damage ball bearings.
11.When taking your control unitout of the box, never let it fall on the floor.
Safety protection system:
When the temperature rises above the preset value, cut off the power supply. Shut down the unit while these curity protection system is working. After 10 seconds. restart the device.
To protect the motor and control unit from excessive temperature rise caused by overload(such as ball bearing failure, excessive load of drill bit,etc).
When the temperature rises above the preset value, cut off the power supply. Shut down the unit while the security protection system is working. After 10 seconds, restart the device
In order to protect the motorand control unit from excessive temperature rise caused by overioad(such as ball bearing failure excessive load of drill bit, etc.), the temperature sensor is activated
Operating procedure:

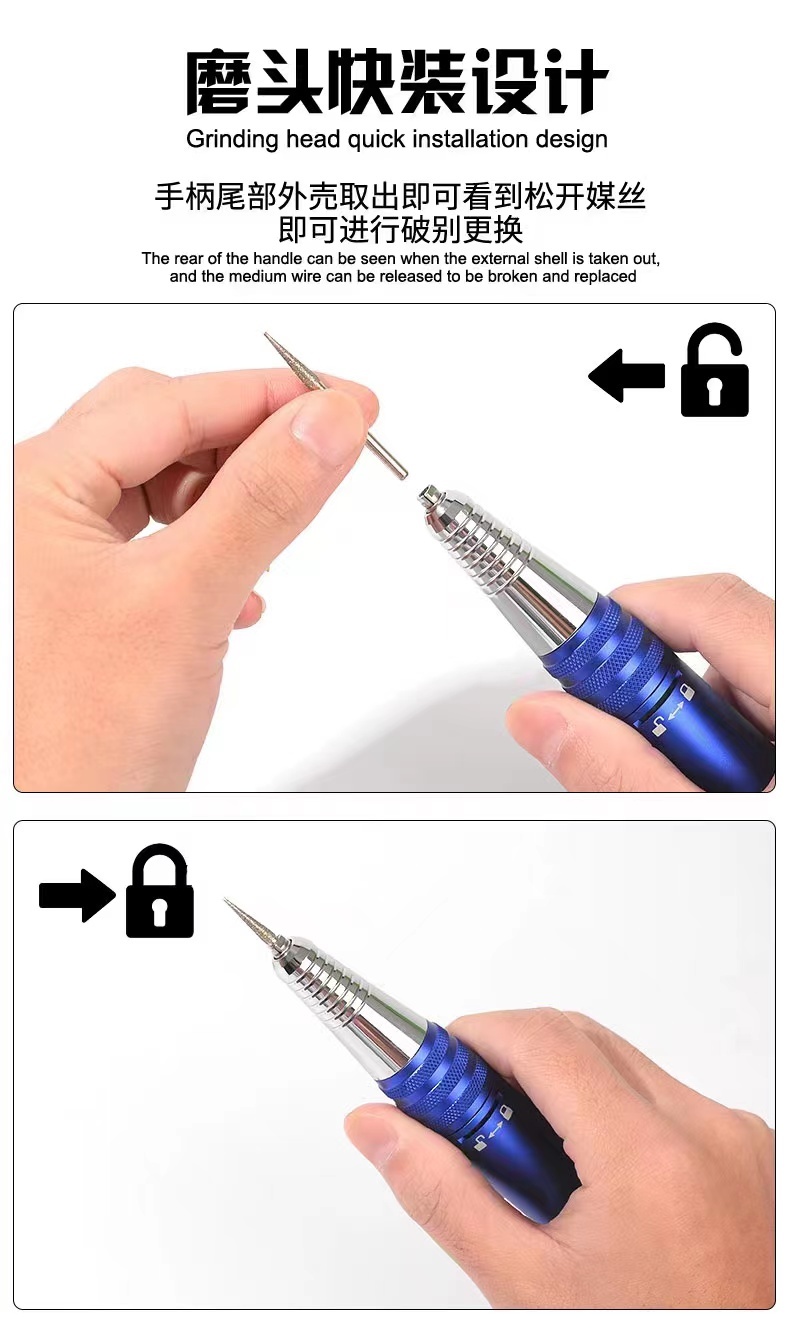

a.To remove the drill bit turn the handle clock wise in the arrow direction until the handle clicks to stop, and remove the drill bit.
