2016-2020 MacBook Model NAND SSD Chip

Name: 2016-2020 MacBook Model NAND SSD Chip
Brand: Master Liu Store
Price: 50 USD
Availability: InStock
Rating: 5 (1 reviews)

5 (1)

88 Sold

$50.00 ~~$60.00~~

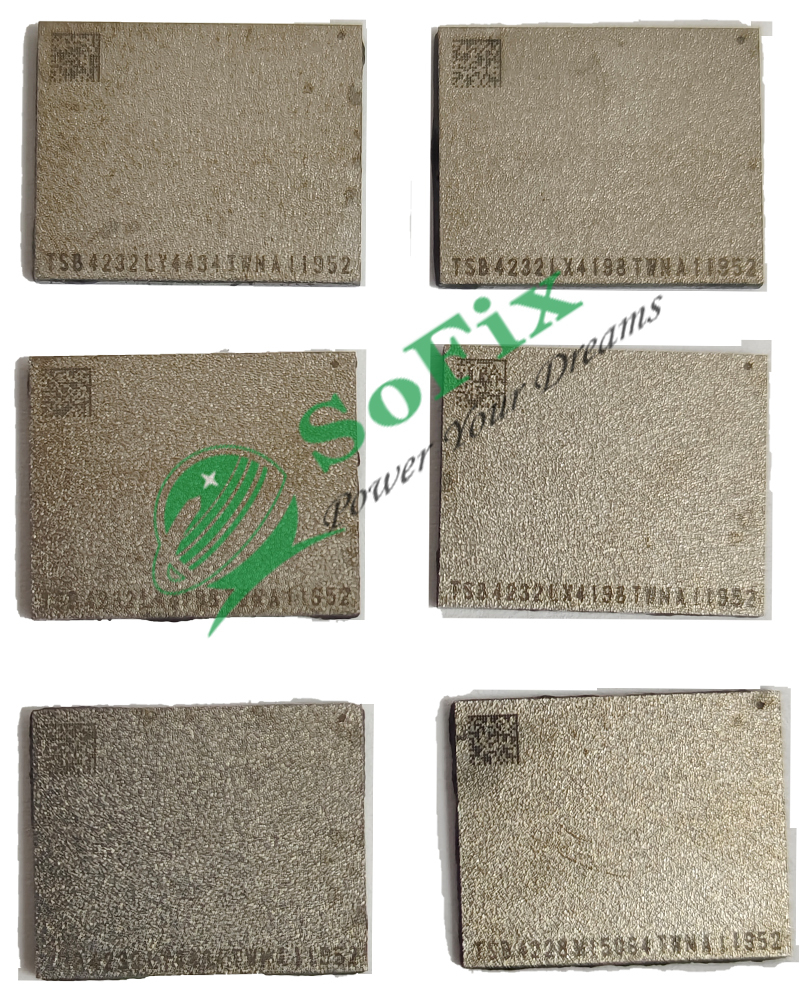

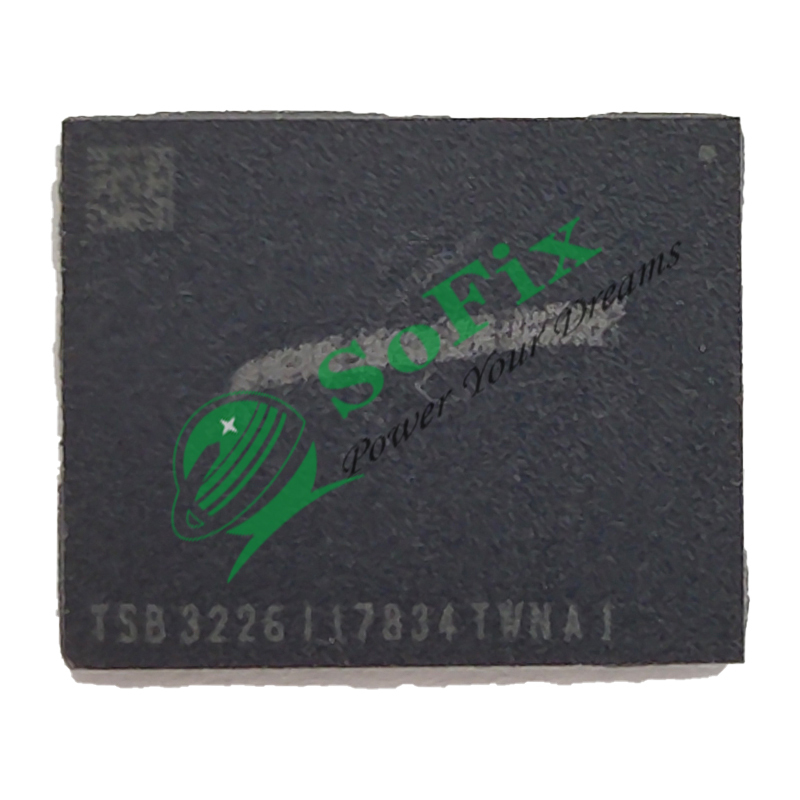

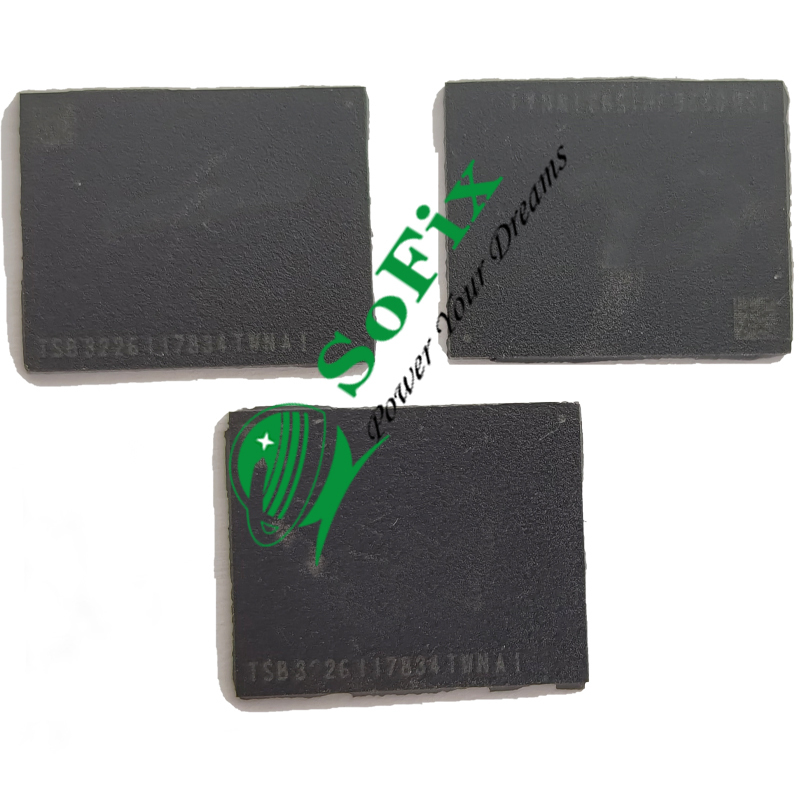

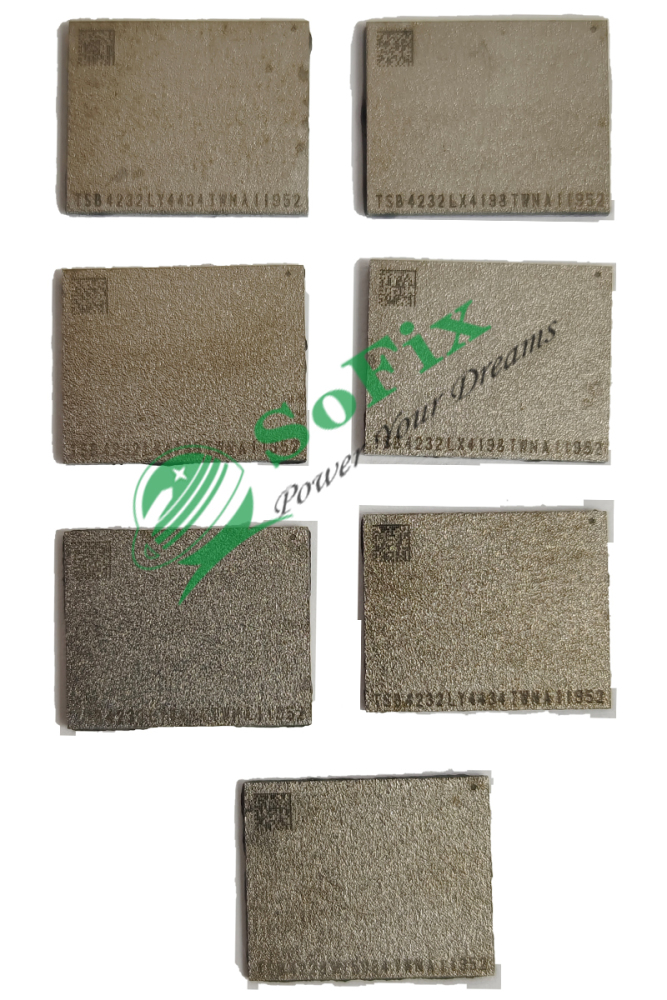

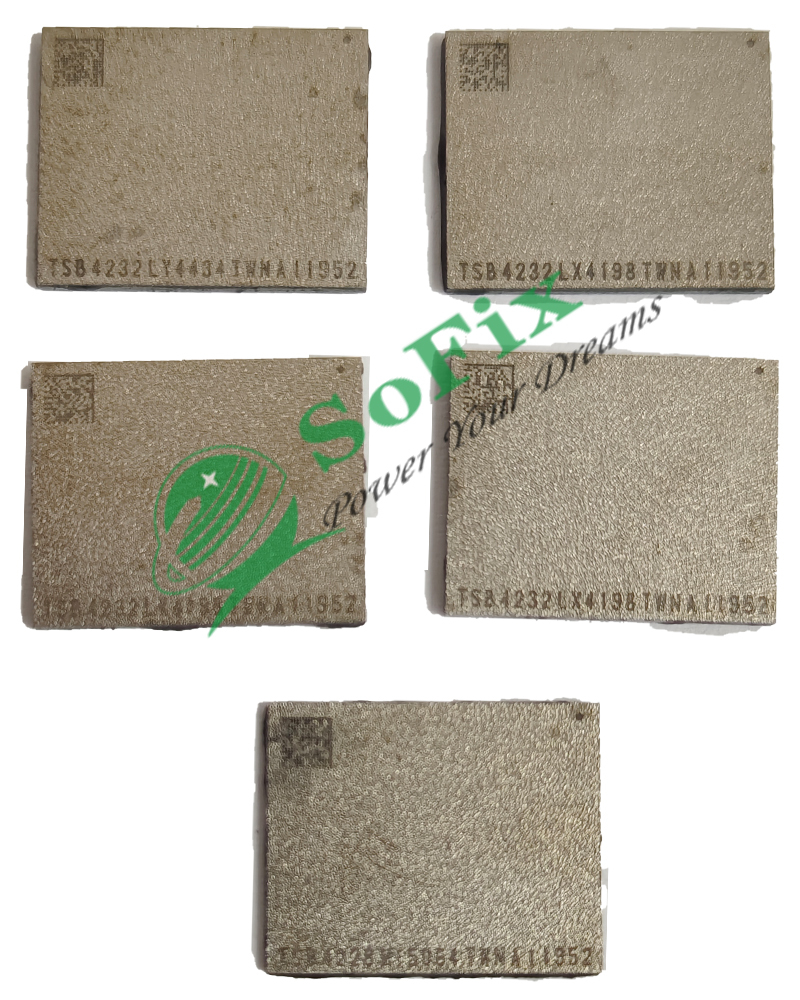

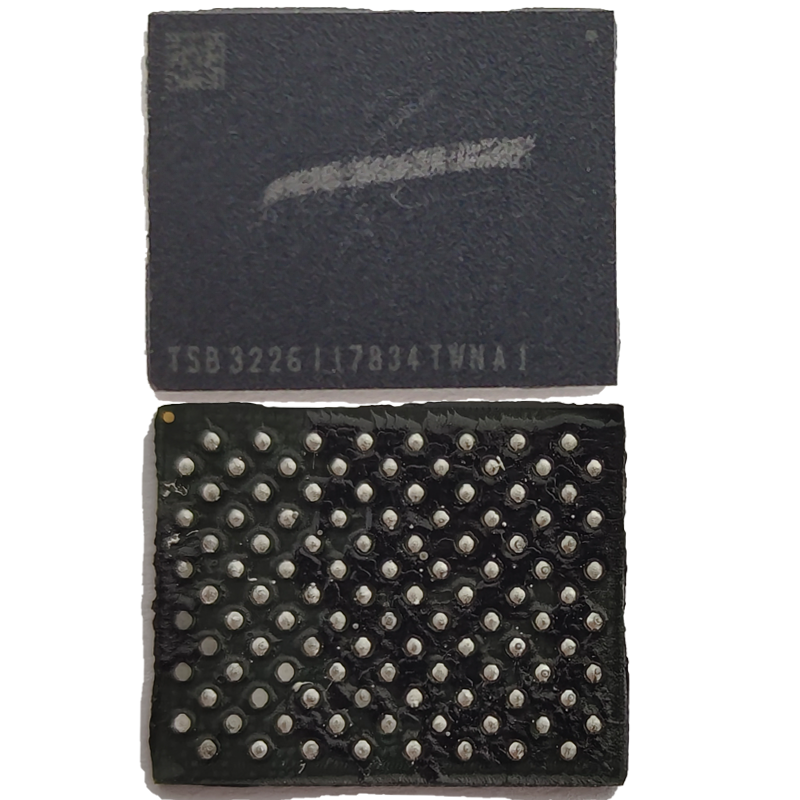

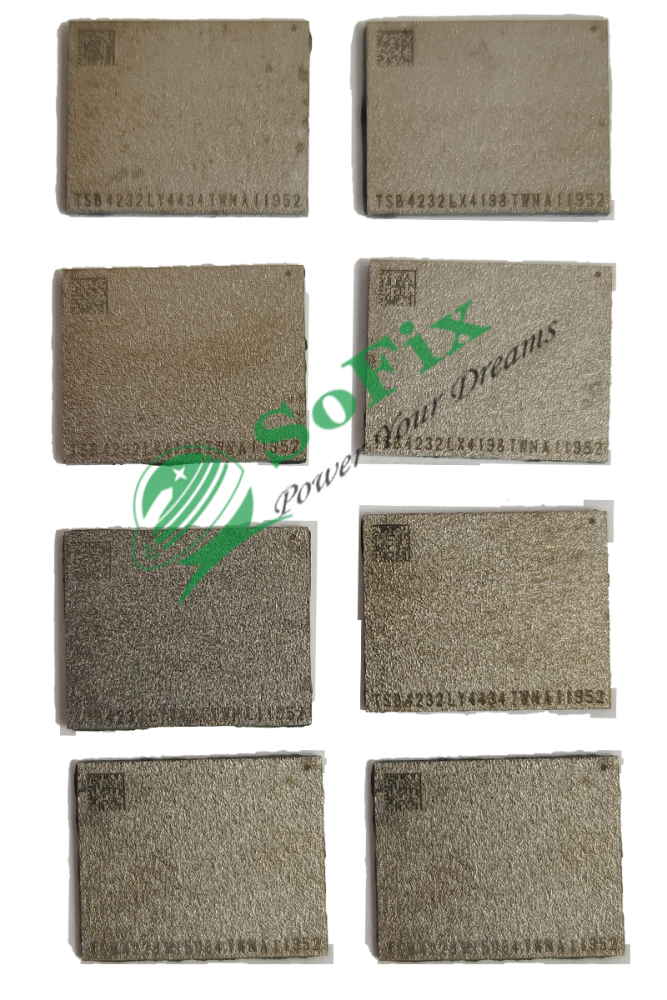

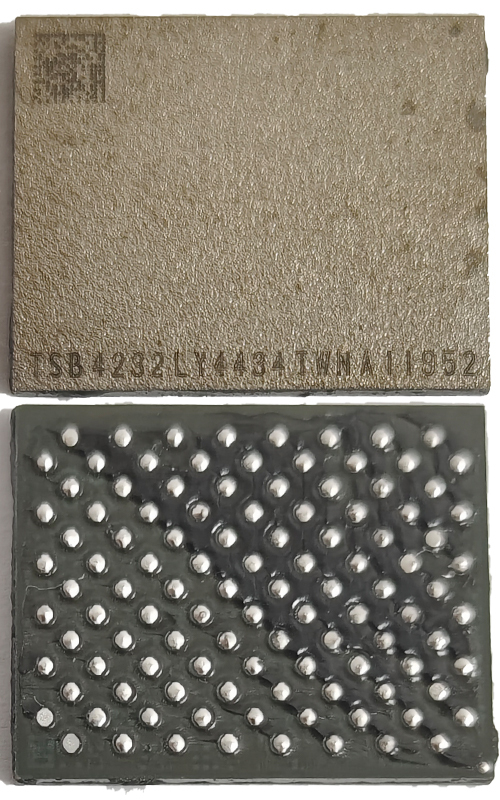

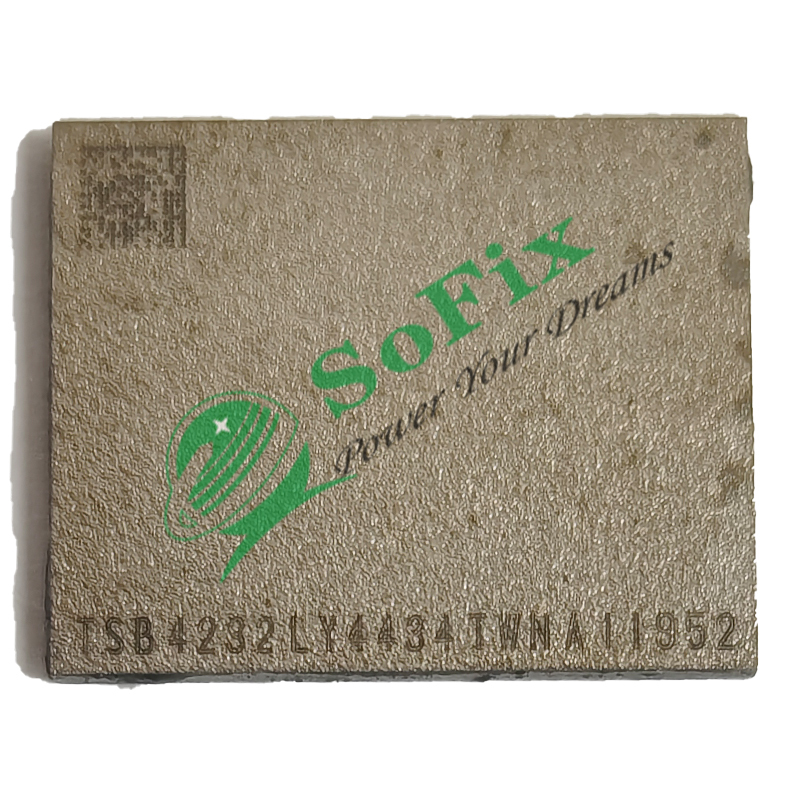

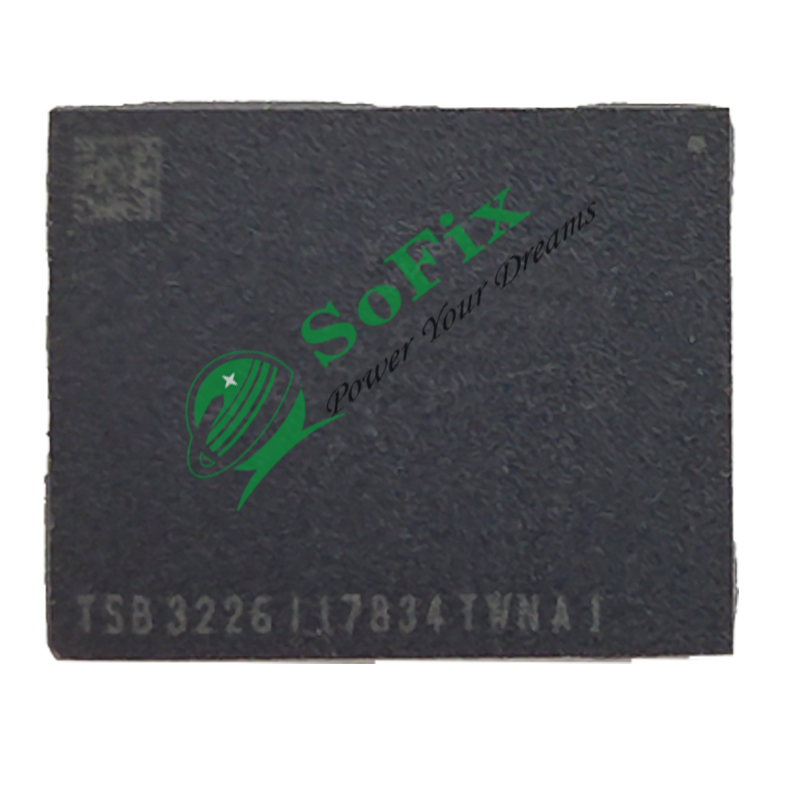

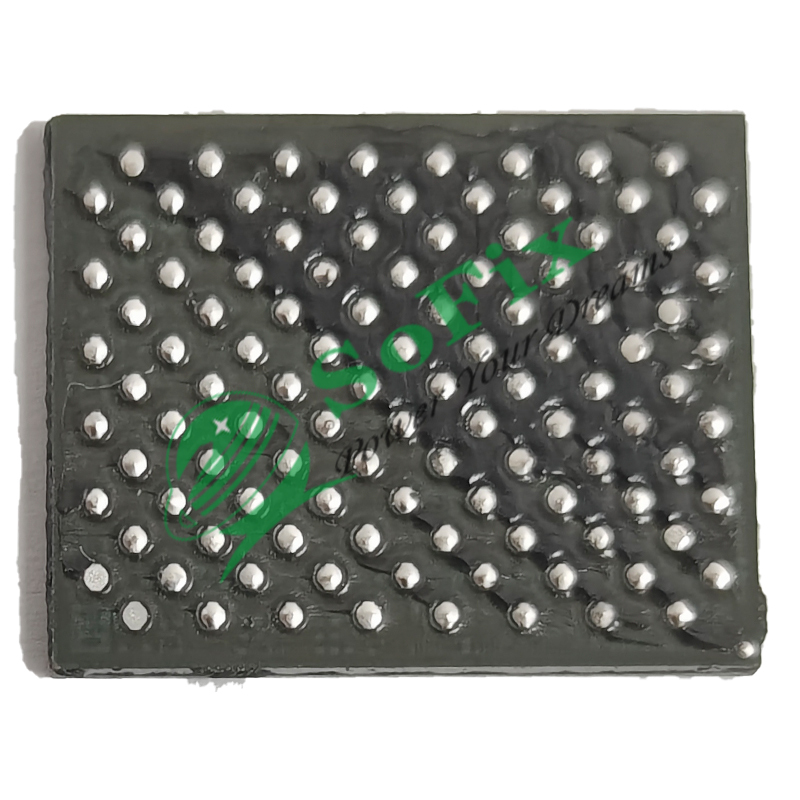

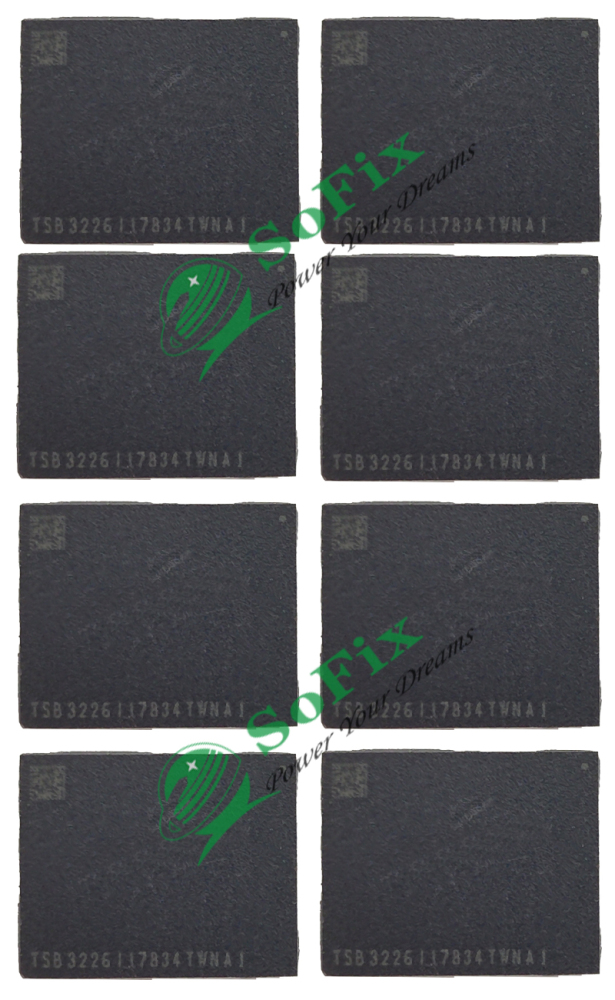

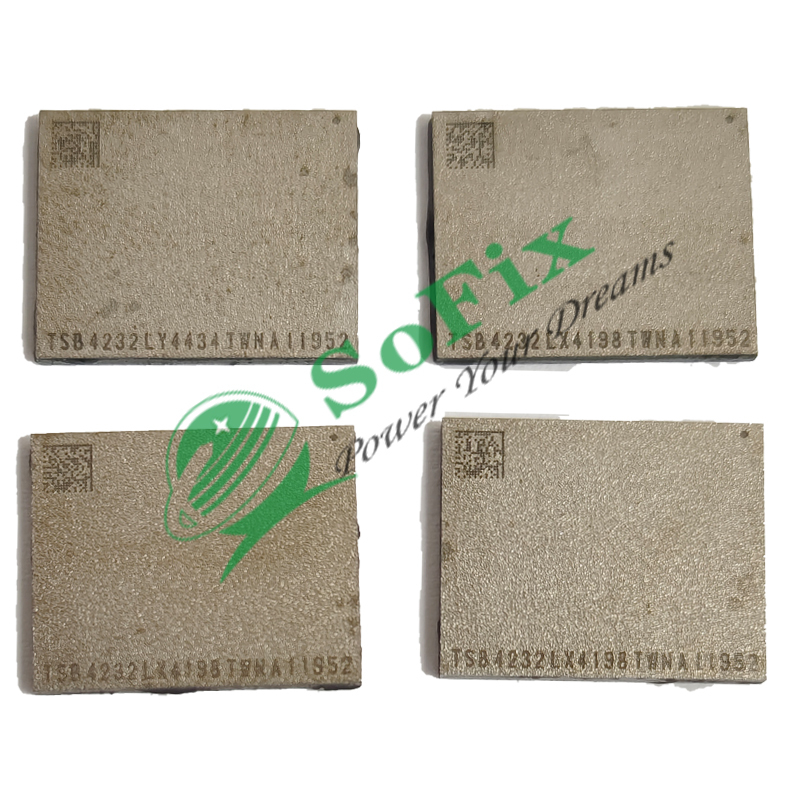

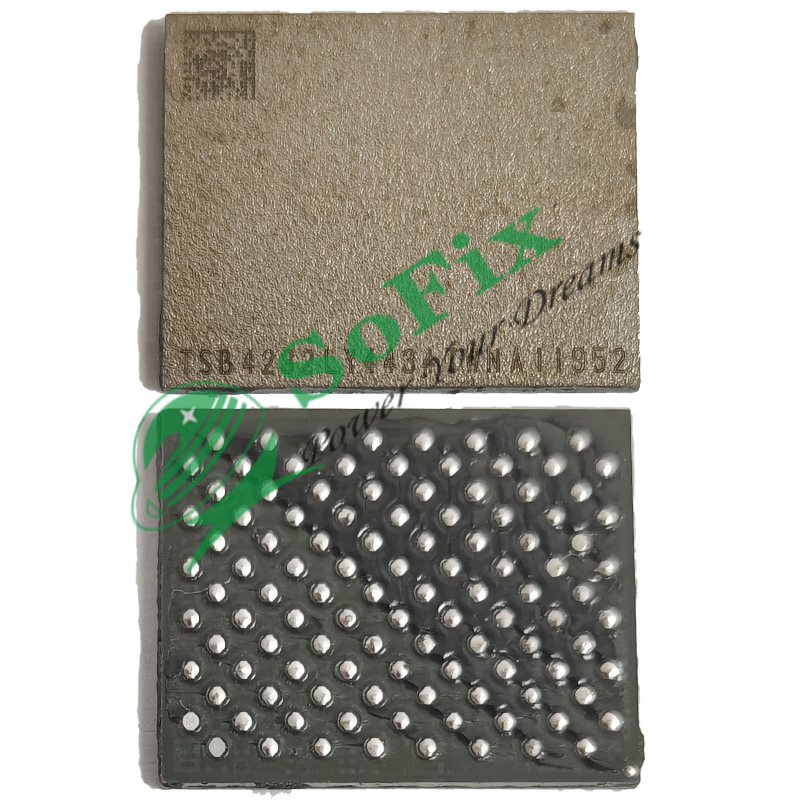

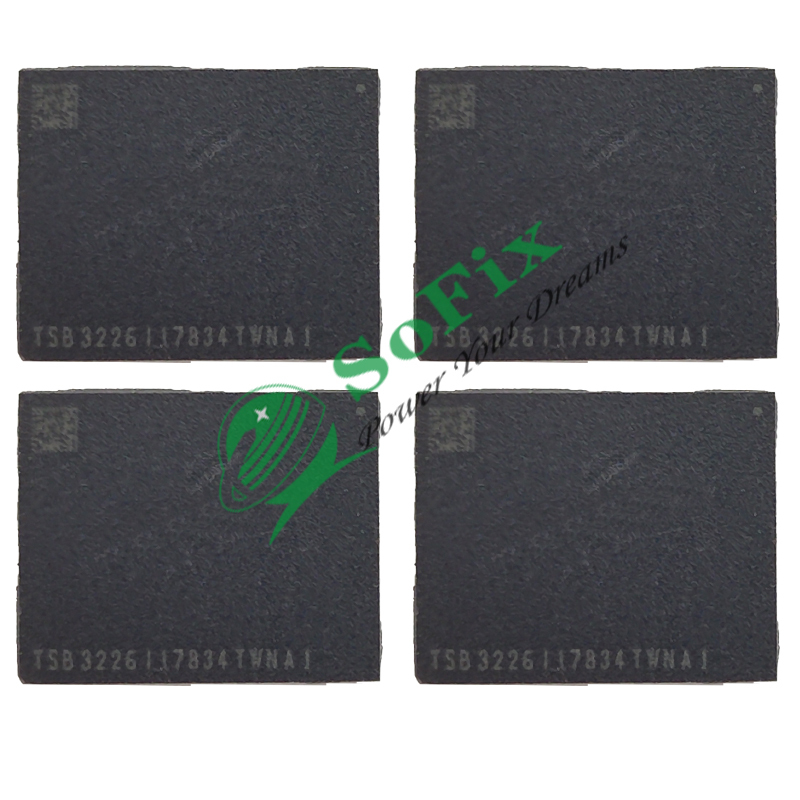

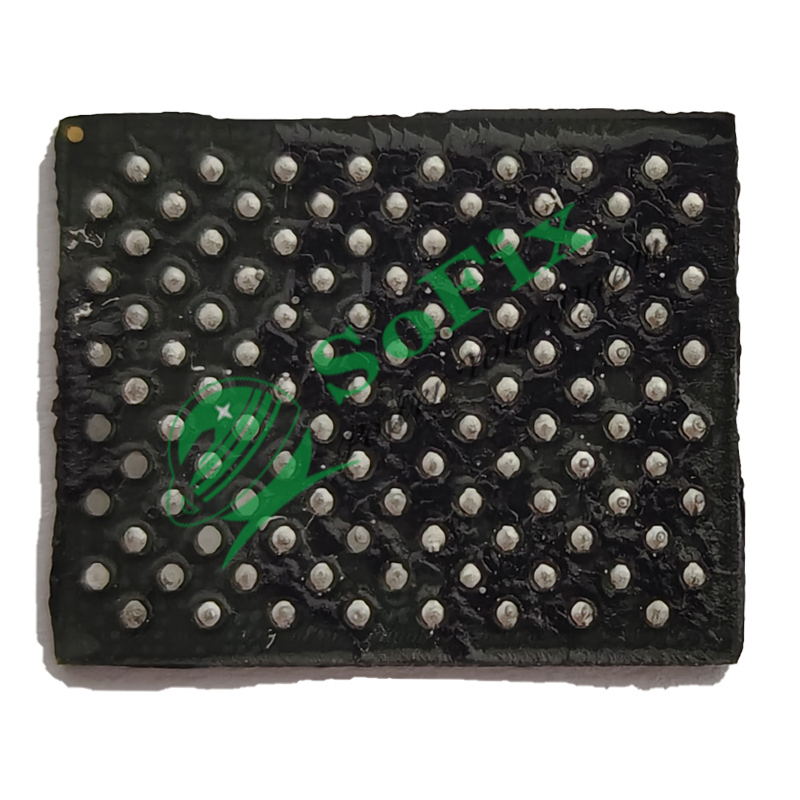

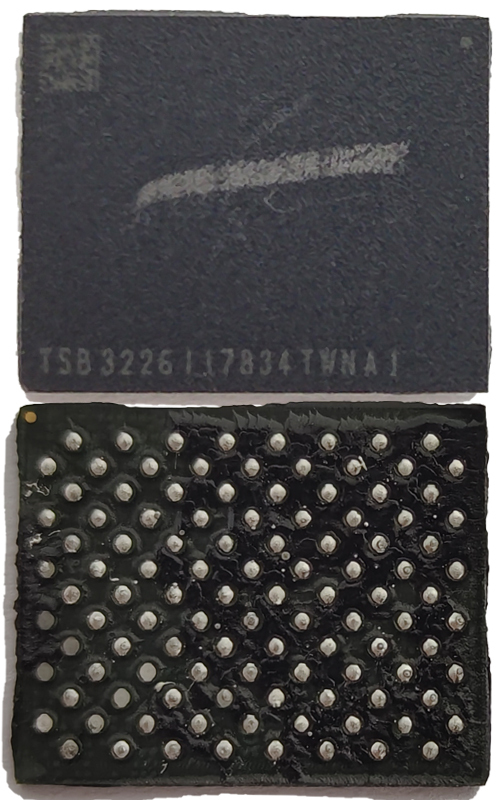

256GB，512GB，1TB，2TB original logic board NAND chip

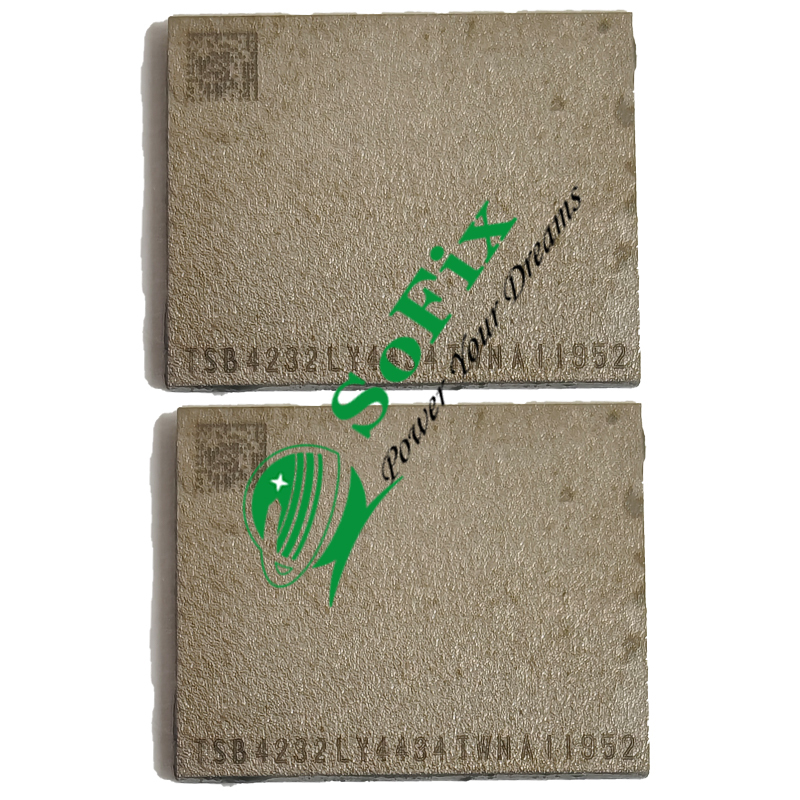

How to install two NAND chips:

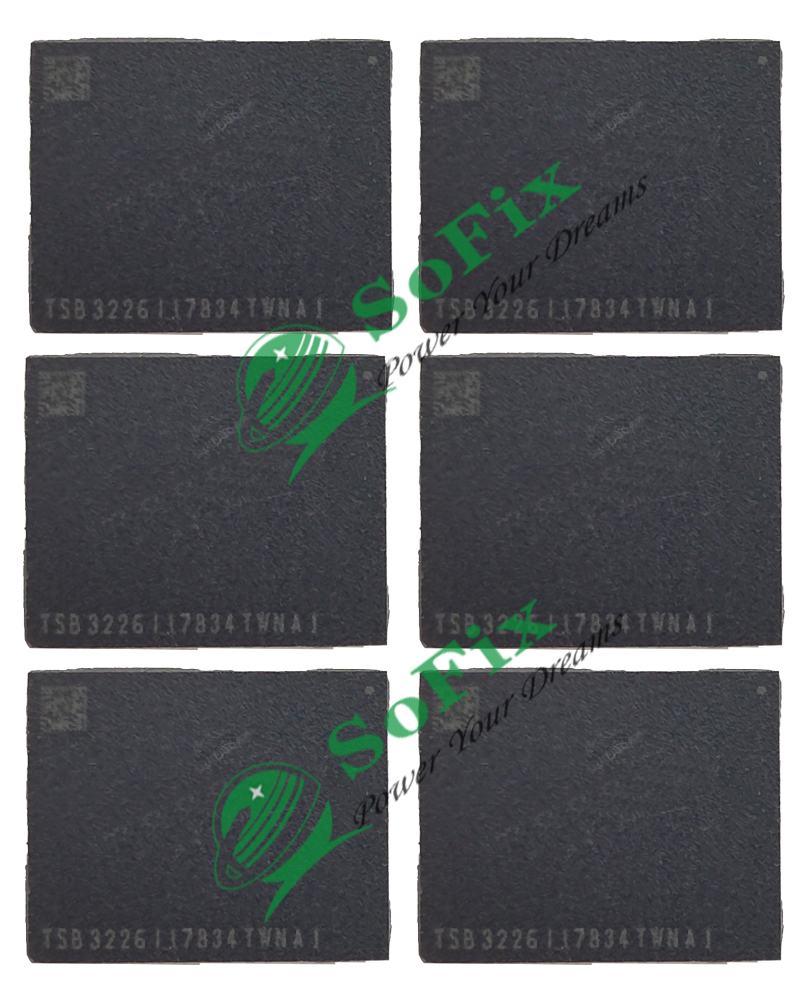

1, you can use 2 NAND instead of 6 NAND （A2141）
First, you need to remove the original 6 NAND chips，then remove U9000 and U9080 chips .
Power on, measure L9521 0.9V, L9530 1.8V, L9580 2.5V, whether the voltage are normal
If the voltage is normal, then install 6 to U9100 and 7 to U9200.

2, you can use 2 NAND instead of 5 NAND （A1990）
First, you need to remove the original 5 NAND chips，then remove U9500 and U9580 chips .
Power on, measure L9020 0.9V, L9030 1.8V, L9081 2.5V, whether the voltage are normal
If the voltage is normal, then install 6 to U8600 and 7 to U8700.

3 , If there are only 4 NAND chips originally, they can be installed directly. (A1990)
Power on, first measure L9020 0.9V, L9030 1.8V, L9081 2.5V, whether the voltage is normal.
If the voltage is normal, then install 6 to U8600 and 7 to U8700.

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Capacity:

256G

512G

1TB

2TB

4TB
MODEL:

A1706

A1707

A1989

A1990

A2141

A2251

A2289

A2159

A1932

A2179

A2337

A2338

Mac Mini A1993

Quantity:

Add to Favorites (0)

1/1

Description

There are two types of T2 capacity: 1GB and 2GB
T2 chip with 1GB capacity can control 128GB, 256GB, 512GB NAND;
2GB capacity T2 chip can control 1TB, 2TB, 4TB NAND.
So when 128GB, 256GB or 512GB NAND is upgraded to 1TB, 2TB or 4TB NAND, the 1GB T2 chip must be replaced with 2GB.
The NAND can only be removed from the Donor board , and a new NAND or mobile phone NAND cannot be used because the underlying data is different.

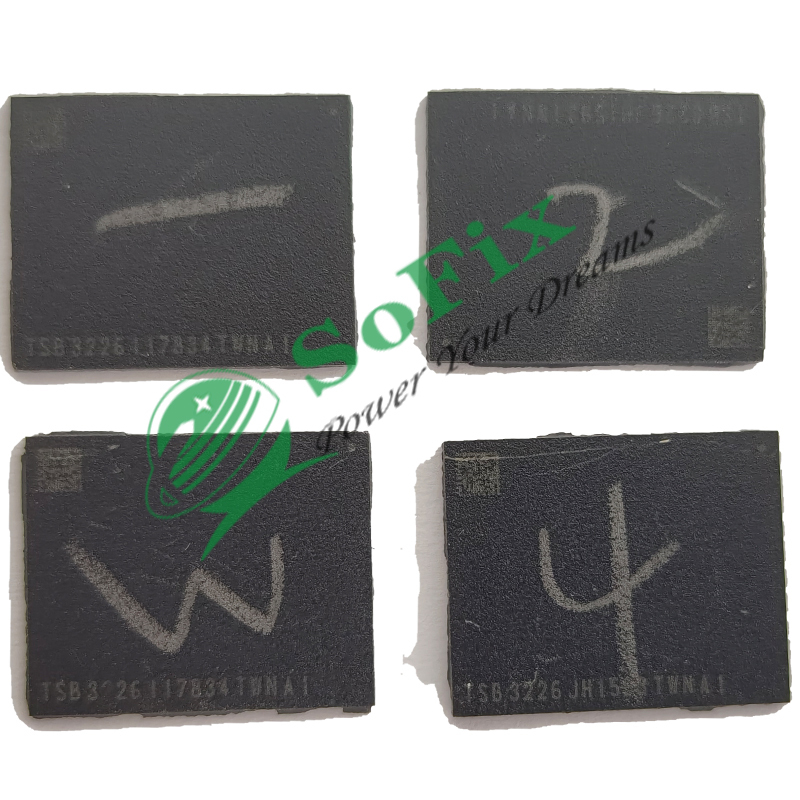

When removing the NAND from the Donor board , the position of the NAND cannot be wrong. For example, the NAND of the Donor board is U8600, U8700, U8800, U8900. When installing back to the motherboard, the order of NAND must also be installed in the order of U8600, U8700, U8800, U8900. Otherwise, it will report an error "9" "4013" "6"。

How to install two NAND chips:
1, you can use 2 NAND instead of 6 NAND （A2141）
First, you need to remove the original 6 NAND chips，then remove U9000 and U9080 chips .
Power on, measure L9521 0.9V, L9530 1.8V, L9580 2.5V, whether the voltage are normal
If the voltage is normal, then install 6 to U9100 and 7 to U9200.

2, you can use 2 NAND instead of 5 NAND （A1990）
First, you need to remove the original 5 NAND chips，then remove U9500 and U9580 chips .
Power on, measure L9020 0.9V, L9030 1.8V, L9081 2.5V, whether the voltage are normal
If the voltage is normal, then install 6 to U8600 and 7 to U8700.

3 , If there are only 4 NAND chips originally, they can be installed directly. (A1990)
Power on, first measure L9020 0.9V, L9030 1.8V, L9081 2.5V, whether the voltage is normal.
If the voltage is normal, then install 6 to U8600 and 7 to U8700.
