2010-2020 MacBook LCD Backlight Driver Chip

Name: 2010-2020 MacBook LCD Backlight Driver Chip
Brand: Master Liu Store
Price: 2 USD
Availability: InStock
Rating: 5 (1 reviews)

5 (1)

28 Sold

$2.00 ~~$2.50~~

Backlight chip that control screen LED lights

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

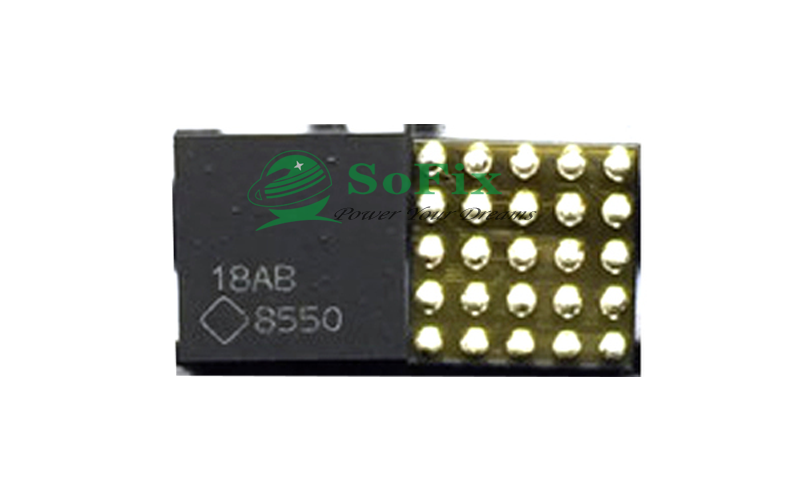

A1466, A1465 use LP8550 BGA backlight chip, the model of chip printing is D68B.

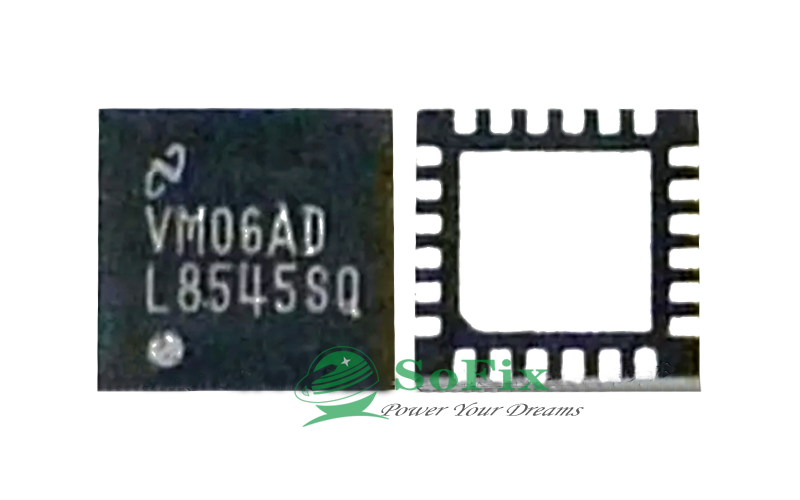

A1398 (2012), A1425 use LP8545QX QFN backlight chip, the chip printing model is 45-EXTJ or L8545SQ.

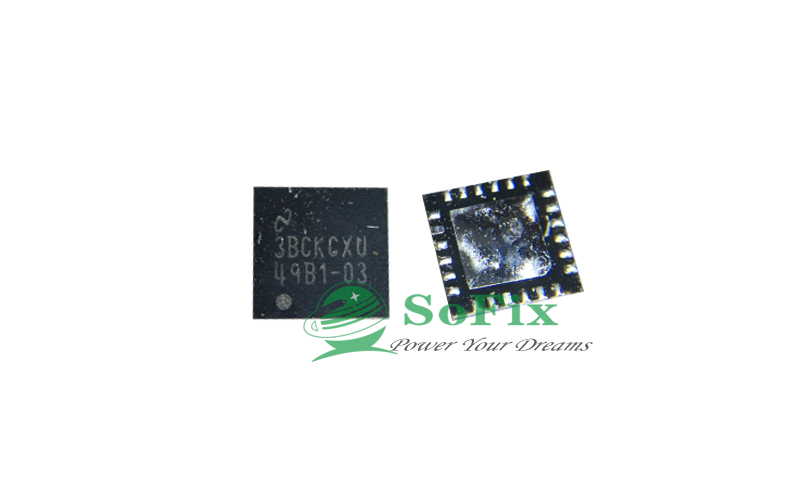

A1398 (2013-2014) U7750,use LP8549B1SP QFN backlight chip, the chip printing model is 49B1-03.

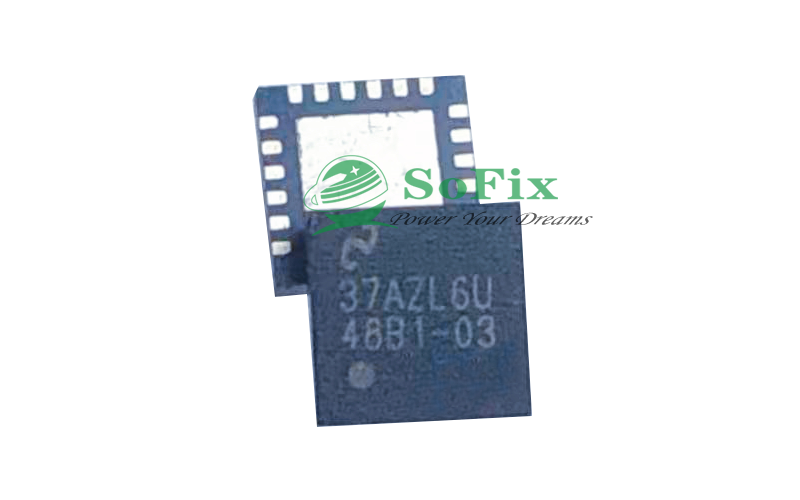

A1932,A1989,A2141,A1708,A2159,A1990,A1706,A2179,A1398(2015),A1502,A1707,A2251,A2289,A2337,A2338 use LP8548B1SQ QFN backlight chip, the chip printing model is 48B1-03/48B1-04/48B1-11/48B1A04.
